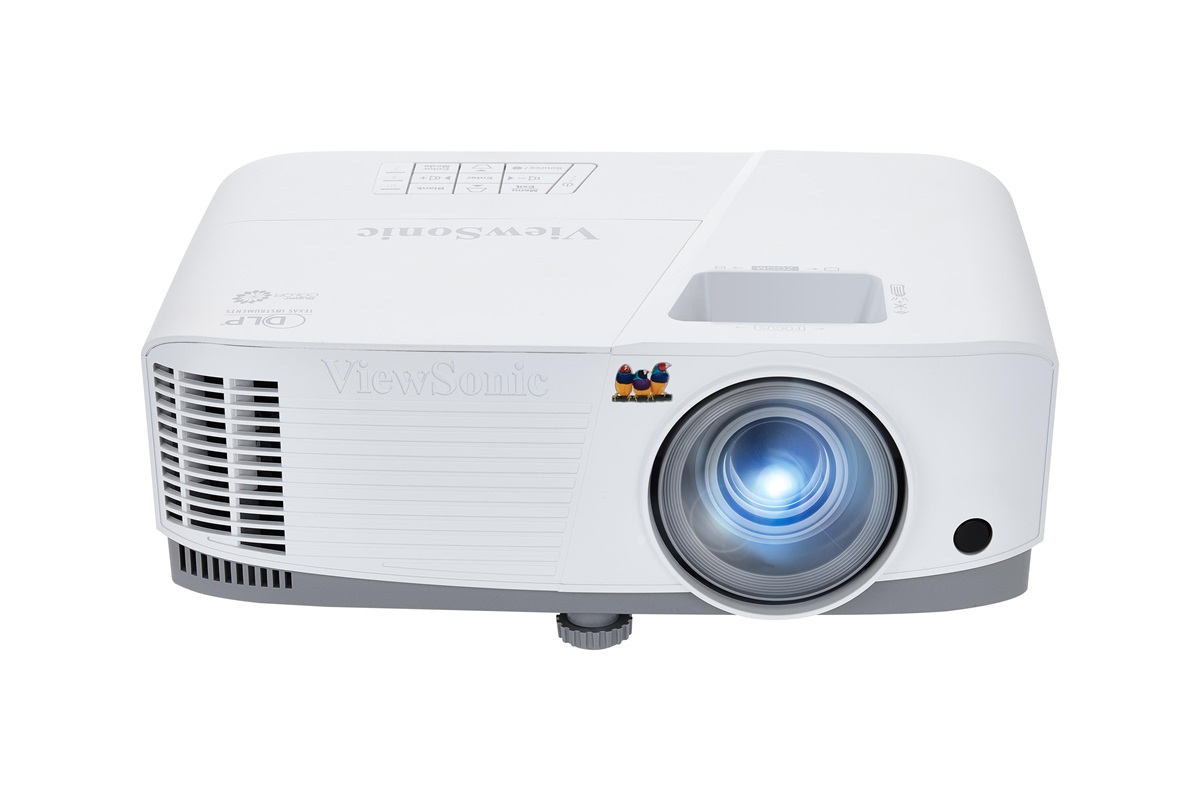

The ViewSonic PA503W offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3600 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503W reduces power consumption and extends the lamp life by up to 15,000 hours.
Energy Efficiency
Extended Lifespan
Users can choose different lamp mode to extend the lamp’s lifespan. When Power Saving setting is on and without any signal input, the projector will automatically switch to Eco Mode and SuperEco Mode
Eco Mode: This projector automatically switches from Normal to Eco Mode whenever it has been left idle for 5 minutes.
SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 70%, extending the lamp’s lifespan to 15,000 hours on average.
Automatic Sleep Timer
Forgetting to shut off projectors is a common occurrence, especially in public spaces such as classrooms and meeting rooms. PA503W’s sleep timer allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.
Auto Power Off
When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.
Impressive Performance
Bright Images in Any Environment
3,600 ANSI Lumens of brightness and a 22,000:1 high contrast ratio guarantee the production of bright images in any environment, including rooms with high ambient light.
SPECIFICATIONS
-
SPECIFICATION
Projection System : 0.65" WXGA
Native Resolution : 1280x800
DC Type : DC3
Brightness : 3500 ANSI lumens
Contrast Ratio With SuperEco Mode : 22000:1
Display Color : 1.07 Billion Colors
Light Source : Lamp
Light Source Life (Nor/SuperEco) : 5000/15000
Lamp Watt : 200W
Lens : F=2.56-2.68, f=22-24.1 mm
Projection Offset : 100%+/-5%
Throw Ratio : 1.55~1.70
Image Size : 30" - 300"
Throw Distance : 1m-10.98m(100" @3.34m)
Keystone : ±40° (Vertical)
Optical Zoom : 1.1x
Audible Noise (Eco) : 27dB
Resolution Support : VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility : NTSC, PAL, SECAM
Horizontal Frequency : 15K~102KHz
Vertical Scan Rate : 23~120Hz
-
INPUT
Computer In (share With Component) : 2
Composite : 1
Audio-in (3.5mm) : 1
HDMI : 1 (Back)
-
OUTPUT
Monitor Out : 1
Audio Out (3.5mm) : 1
Speaker : 2W
-
CONTROL
RS232 : 1
USB Type Mini B (Services) : 1
-
OTHERS
Power Supply Voltage : 100-240V+/- 10%, 50/60Hz AC
Power Consumption : Normal: 260W
Standby: < />
Operating Temperature : 0~40?
Carton : Brown
Net Weight : 2.2kg
Dimensions (WxDxH) W/adjustment Foot : 294x218x110mm
Language : English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
-
STANDARD ACCESSORY
Power Cord : 1
VGA Cable : 1
Remote Control : 1
QSG & CD : QSG: 1 / CD: NA
-
OPTIONAL ACCESSORY
Air Filter : RSPL
