1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
-
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
-
Complies with IEEE 802.3ab and IEEE 802.3z
-
Extends fiber distance up to 1,800 feet (550m)
What This Product Does

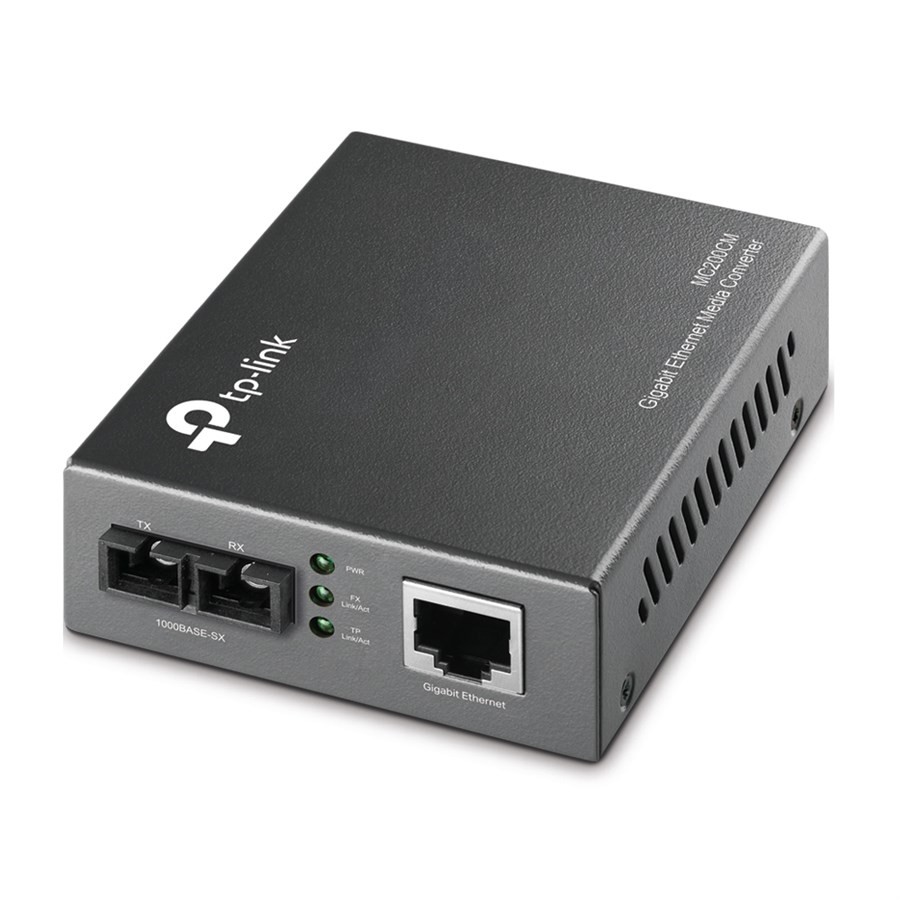

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
